What is a Special Moment Frame? Simpson Strong Frame vs. MiTek Hardy Frame

Posted by Alex Rodriguez on Aug 30 2018

simpson-strong-tie-vs-mitek

Do you know all the retrofit solutions that are available for your soft-story building? The most common solution is to install special moment frames to bolster the existing structure. We’ve written this article to help you understand the nuts & bolts of the two most popular special moment frame (SMF) manufacturers; Simpson Strong Frame and the MiTek Hardy Frame. Soft story retrofitting is about to become a major topic of discussion among property owners in Los Angeles County.

What is a Moment Frame?

There are over 13,000 buildings affected in the City of Los Angeles alone, and another 1,500 in Santa Monica. The overwhelming majority of them will require steel as a component of the seismic retrofit solution, it can be in the form of a Cantilevered I-Beam Column, or as the more popular Special Moment Frame pictured below. A special moment frame is an engineering solution that consists of structural steel comprised by two large columns, a heavy beam, and lots of connections. They are premanufactured, meaning they are produced in batches at a factory, and can be shipped to the jobsite flat or assembled. This rigid structure is strong enough to withstand tremendous shaking during an earthquake, moment frames will combat the lateral forces experienced during seismic movements, allowing your property and tenants to survive the event. Your building might get some damage, but it will not collapse. This type of Moment Frames have several benefits over a welded Ordinary Moment Frame. The two largest manufacturers of Special Moment Frames include Simpson Strong-Tie and MiTek USA. Property owners are trying to mitigate soft-story retrofit costs by scrutinizing every penny down to the nuts and bolts (pun intended) so it's important that they know what a Moment Frame is. This short article will help you understand the differences between the two most popular moment frame systems. This article is not about the price of soft-story retrofit; but you can learn more about costs by clicking here.

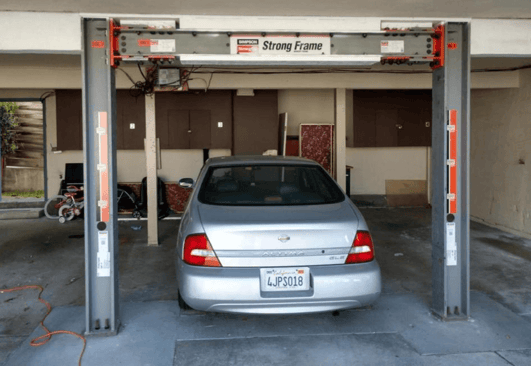

simpson-strong-frame(Simpson Strong Frame SMF installed in San Bruno, image courtesy of Intero Real Estate)

Simpson Strong Frame

  • Designed for soft story retrofit utilizing the propriety Yield Link, or “structural fuse”
  • Bolted system that ships flat.
  • Heavily tested. Simpson provides supporting engineering details and notations.
  • Supported by an integrated system of hardware, screws, connectors.
  • No welding required.

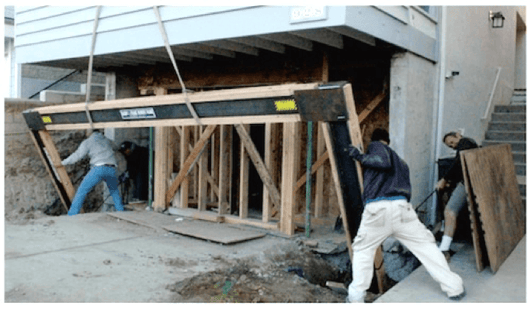

mitek-hardy-frame(MiTek Hardy Frame SMF installation, image courtesy of Contractor Supply Magazine)

MiTek Moment Frames Benefit

  • Specially designed for Soft story retrofits, utilizing the “Side-Plate System.” AISC 358 Prequalified Moment Connection Standard.
  • Custom Moment Frame Designs available for residential, commercial and industrial use. Meeting 3rd party agency evaluation for alternative materials is not required.
  • Lateral Bracing of the beam is not required.
  • Standardized sizes that are pre-engineered for easy specification by designer.
  • System is approved by AISC’s “Connection Approval Review.”
  • Field welding may be required but not necessary.

How are they similar?

Both Simpson Strong-Tie and MiTek Systems manufacture Special Moment Frames (SMFs). They are very similar products in both looks and installation, but beyond that they share other similarities.

  1. Both are designed for Soft Story Retrofitting and provide a low-cost alternative to traditional field-welded moment frames.
  2. They are both pre-engineered and provide supporting details and notations to be used as part of the engineering plans.
  3. They eliminate the need for lateral bracing.
  4. Proved Quality control in the connections that cannot be replicated in the field.
  5. The cost of Simpson and MiTek frames are comparable.
  6. The installation is very similar with both systems.
  7. Both systems are manufactured in California.

How are they different?

Just because SMF’s look the same, it doesn’t mean that they are identical. The Simpson Strong Frame and MiTek Hardy Frame are two different systems. Here are their differences.

  1. The connection at the top of the column is very different:
    1. Simpson uses a bolt-on method that can be bolted by hand. This allows the moment frame to be shipped flat and assembled at the job site.
    2. Simpson also used “Yield Link” technology that will absorb the brunt of lateral movement caused during an earthquake. The damaged links can be replaced while the top beam stays in place. This prevents the expense of replacing the beams and columns.
  2. Shipping and Assembly of SMF’s are different.
    1. MiTek uses a fixed top connection.
    2. the moment frame is shipped fully assembled.
    3. Cuts down on assembly time but makes the beam harder to ship, and harder to handle.
    4. If the connection becomes damaged after an earthquake, the beams and columns need to be removed and replaced (a major expense).

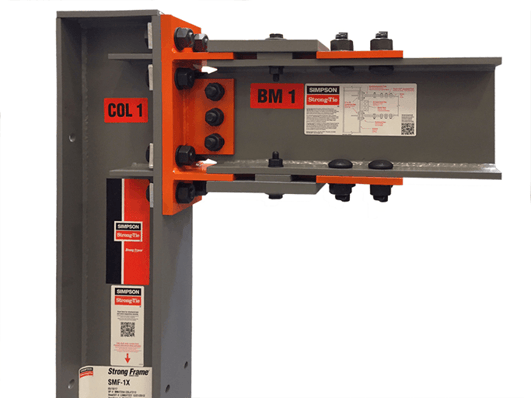

structural-fuse(Yield Link or “Structural Fuse” pictured above in Orange, image courtesy of Simpson Strong-Tie)

Recommendations:

The two special moment frames share many distinct value propositions. However, my recommendation on is for Engineering designers and property owner to utilize the Simpson strong frame special moment frame. The major factor in this recommendation is based on two factors: the Simpson SMF system allows for the continuous use of both the beam and moment frame, saving the property owner thousands in possible replacement costs. Simpson Strong-Tie’s technical support is world class. Having a team of experts available to help with the retrofit design and field installation process is invaluable.
