Could My Building Collapse in an Earthquake? L. A. Soft Story Retrofit

Could My Building Collapse in an Earthquake_

If you look around a typical Los Angeles neighborhood, there’s no doubt you will find a soft story building.  Soft Story buildings are easy to identify because they feature tuck under parking (this is parking that is below raised parts of the structure), a popular design for apartment buildings. This type of apartment building design is prone to structural failure and collapse during earthquakes if not built to modern building code.

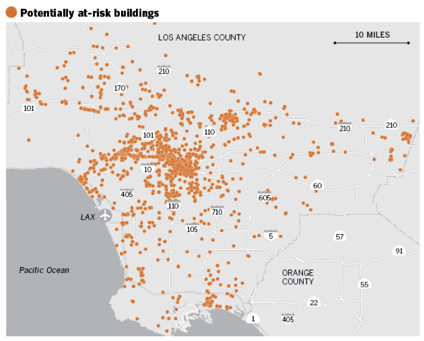

The Los Angeles Department of Building Safety recently identified 13,500 apartments that will require some type of seismic retrofit as part of the LADBS Soft-Story Retrofit Program. The mandatory program was authorized after the passing of Ordinance 183893 and Ordinance 184081, creating one of the toughest seismic codes in the nation.


Soft-Story Apartments

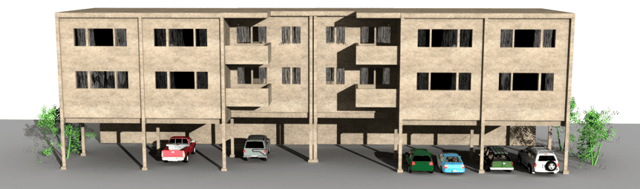

Most people have no idea what a soft story building is or what it looks like, but they are easily identifiable. A soft story building is any multi-story building in which one or more floors have windows, wide doors, large unobstructed commercial spaces, or other openings in places where a shear wall would normally be required for stability as a matter of earthquake engineering. A typical soft story building is an apartment building of three or more stories located over a ground level that has large openings, like tuck-in parking garages, or any other large openings.


Soft story apartment buildings became popular after Los Angeles experienced a population boom, shortly after World War II. The design was easy and relatively cheap to build. A high concentration of soft story apartment buildings can be found in the San Fernando Valley, along Hollywood, and heading towards the beach in West Los Angeles.

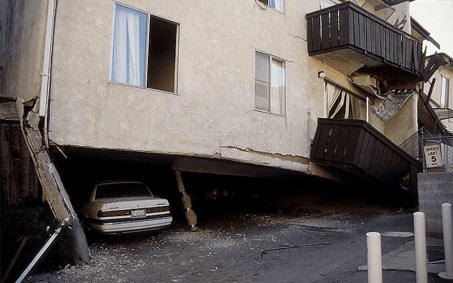

The soft story building design is vulnerable to collapse during violent earthquakes. Several apartment buildings of this type collapsed during the 1989 Loma Prieta earthquake and 1994 Northridge earthquake. These apartment buildings have a flimsy first floor parking that cannot support the entire structure during an earthquake.


Why Do They Collapse?

In the video above you can see what happens to a structure that is not retrofitted seismically.

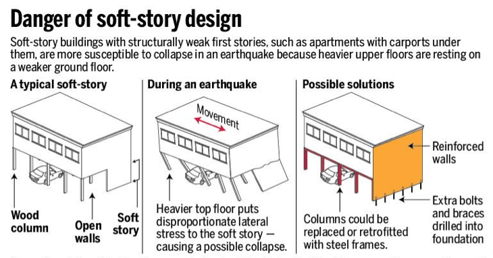

The soft story design was easy to build in the 1960’s but they do not comply with newer more stringent seismic code. The first story is too weak to support the entire structure during an earthquake. The soft story apartment buildings with carports under them are more susceptible to collapse in an earthquake because the heavier upper floors are resting on a weaker ground floor. The wood and cement columns cannot support the entire buildings during violent shaking. During an earthquake cracks can form on the beams; poorly reinforced columns lose cement and then collapse under disproportionate lateral stress. Any soft story apartment building in Los Angeles, West Los Angeles, and the San Fernando Valley that were built prior to 1980 are considered at risk of collapse during an earthquake. The risk is even higher for soft story buildings built along fault lines, like the new earthquake faults identified in West Los Angeles.


How Do You Retrofit a Soft-Story?

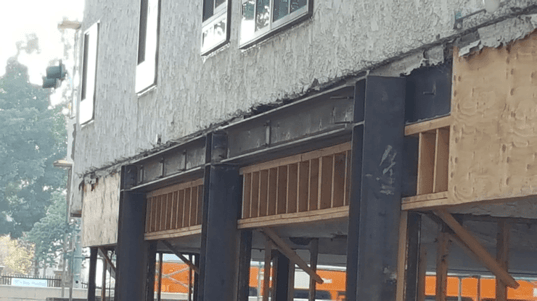

You'll need steel reinforcement, specifically, you'll need a Special Moment Frame (SMF) to support your building during an earthquake. Unsure of what a Moment Frame is? Read our article Three Retrofit Solutions and How They Affect Cost Property owners of soft story buildings have already received a notice in the mail from the city of Los Angeles Department of Building Safety. Owners will have two years from 2015 to either submit proof that the building doesn’t need retrofitting or must provide plans for seismic retrofit. All plans for retrofit must be approved by the city prior to construction. Each city enacted their own requirements, so be sure to check with your local municipality to ensure your seismic retrofit plans comply with new seismic code.  As seen in the image above, columns can be reinforced, or they can be replaced altogether. This will vary depending on the size and design of your soft story building.


Bay Cities Construction can help you with your soft story retrofit. We are a California Licensed Contractor and our team of engineers and designers are ready to work for you. We are committed to making the soft story retrofit process as quick and painless as possible. If time is of the essence and you want to complete the soft story retrofit quickly, we can help. Don’t wait for the Big One to damage your building. You can get the soft story retrofit process started today. Deadlines for the Los Angeles Soft Story Retrofit are quickly approaching, don’t get fined for not complying. Unsure if your deadline passed already? Read Soft-Story Retrofit Deadlines to see if you'll have to file an extension.



In this video we explain how you retrofit a 'soft story' building and how we use Special Moment Frames & StrongWalls to fully protect a structure.


Want to Learn More?

If you want to learn everything there is to know about soft-story retrofits you'll want to check out our most in-depth article What is a Soft-Story Retrofit? Everything You Need to Know About Retrofits  on our new websiteThere, you'll be able to access all of our retrofit blog articles, case studies, our retrofit gallery, short videos, and enjoy free access to our full-length soft-story webinars. Our team has developed all this content for property owners like you. It is your destination to learn all about the retrofit process. Bay Cities Construction and Soft-Story Retrofit Pros is here to help answer any questions you may have about your retrofit project. Our team has the experience to Engineer & Build a Cost-Effective Retrofit Solution for your property. Get started today by visiting our website at www.softstoryretrofitpros.com to schedule a free assessment.




About Us

For over 15 years Bay Cities Construction has helped hundreds of homeowners with their projects. When you hire Bay Cities Construction you don’t just hire a contractor, you hire an entire team of Pros. With several years of experience, our team has the expertise to help you Design, Engineer, and Build Your Retrofit Solution. We also represent you City Representation when submitting your plans and ensuring they are approved, and we handle all the Permit Processing so you never miss a day of work. If you think Bay Cities Construction is the right team for you, contact us today. We have the experience, knowledge, and knowhow to help you save time & money with a bolted moment-frame or shear-wall panel.

Ready to take the next step? We’re certain that Bay Cities Construction is the best general contractor for your project, you can Schedule an Appointment by clicking HERE. We offer a complimentary 1-hour consultation at our office, so you can meet our team and we can discuss your Soft Story Retrofit project. If you have been disappointed by other contractors, it's time to call one of the best seismic retrofitters in Los Angeles.
